A Penstock Valve is a specially designed water control device used to start, stop, or isolate the flow of water in open channels and water management systems. It is commonly used where complete shut-off and reliable water control are required.

A Penstock Valve works by moving a gate plate up and down inside a frame. When the gate is in the fully closed position, it blocks the water passage and stops the flow. When the gate is lifted upward, the opening allows water to flow smoothly.

Penstock Valves are widely installed in dams, canals, water treatment plants (WTP), sewage treatment plants (STP/WWTP), reservoirs, irrigation systems, pumping stations, and hydropower projects.

How Does a Penstock Valve Work?

A Penstock Valve consists of:

• Gate plate
• Frame
• Sealing system
• Operating spindle
• Guide system
• Sliding bearings

The gate slides between guide frames for smooth movement. Sliding bearings (Rodamientos/Bearings) reduce friction and support the moving parts, helping the gate operate easily and reliably.

Types of Penstock Valve

Manual Penstock Valve

• Operated by handwheel or gearbox
• Simple and dependable operation
• Suitable for applications without automation requirements

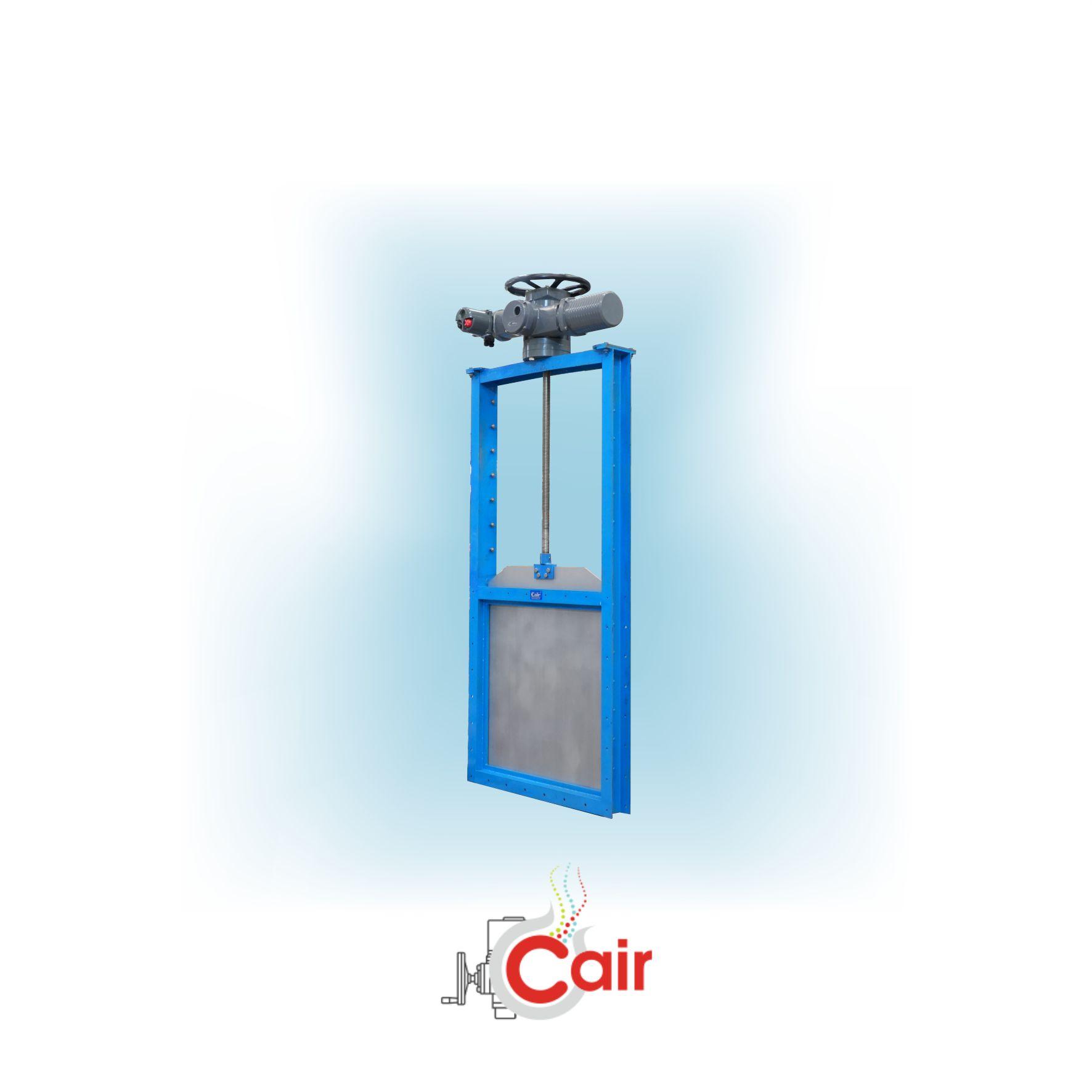

Motorized Penstock Valve

• Operated by electric actuator
• Provides smooth, fast, and effortless operation
• Can be controlled through PLC, SCADA, or Wi-Fi remote systems
• Suitable for automatic water flow management

A properly designed Penstock Valve provides secure water isolation, low leakage, smooth operation, and long service life for critical water control applications.
